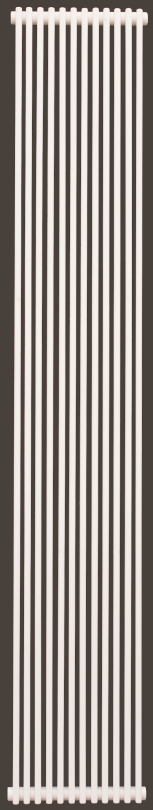

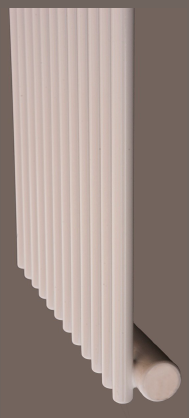

LINEA 14 S
Modular vertical tube radiator · fully customizable widths · heights 400–2400 mm
General Information
The Geber LINEA 14 S is a premium modular radiator featuring vertical parallel round tubes (diameter 14 mm) in a minimalist linear design. Each tube is an independent element, allowing unlimited customization of width while maintaining consistent height. Welded onto round collectors Ø35 mm with epoxy powder coating finish.
Fully Modular System: Width is calculated as (n° of elements − 1) × 40 + 25 mm, where each element adds 40 mm spacing. Available in all standard RAL colors and custom finishes. Perfect for contemporary interiors demanding flexible, design-driven heating solutions.
Technical Specifications
▪ Tubes: Ø14 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Vertical parallel design
▪ Epoxy powder coating
▪ Heights: 400–2400 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Ø14 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Vertical parallel design
▪ Epoxy powder coating
▪ Heights: 400–2400 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Modular System
▪ Width formula: (n − 1)×40 + 25 mm
▪ Each tube = 1 element
▪ 40 mm spacing between tubes
▪ Fully customizable configurations
▪ All standard RAL colors
▪ Custom finishes available
▪ Design-driven contemporary style
▪ Width formula: (n − 1)×40 + 25 mm
▪ Each tube = 1 element
▪ 40 mm spacing between tubes
▪ Fully customizable configurations
▪ All standard RAL colors
▪ Custom finishes available
▪ Design-driven contemporary style

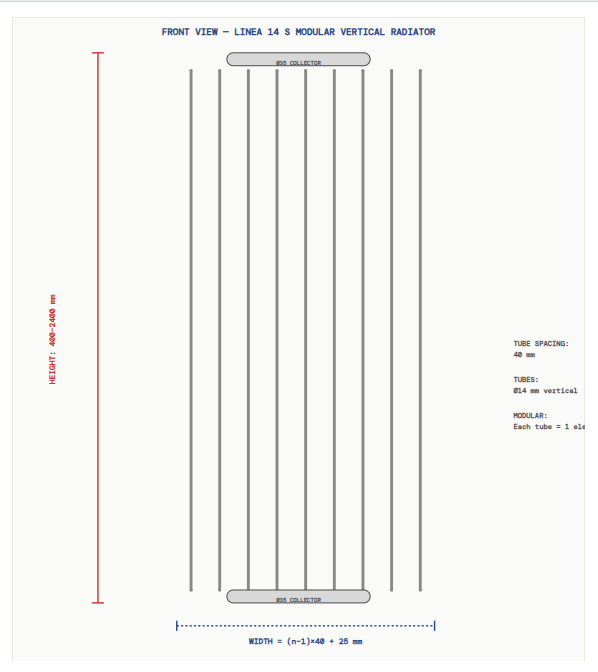

📐 Technical Drawing — Modular Vertical Tube Design
FRONT VIEW — LINEA 14 S MODULAR VERTICAL RADIATOR
Ø35 COLLECTOR
Ø35 COLLECTOR
HEIGHT: 400–2400 mm
WIDTH = (n−1)×40 + 25 mm
TUBE SPACING:
40 mm
TUBES:
Ø14 mm vertical
MODULAR:
Each tube = 1 element
📊 Thermal Performance Per Single Tube (ΔT=50°C)
| Height (mm) | Inter-axis (mm) | Thermal Power per Tube (Watt at ΔT=50) | Example: 10 Tubes (365 mm width) |
|---|---|---|---|
| 400 | 350 | 12 | 120 W |
| 600 | 550 | 18 | 180 W |
| 800 | 750 | 24 | 240 W |
| 1000 | 950 | 30 | 300 W |
| 1200 | 1150 | 36 | 360 W |
| 1400 | 1350 | 42 | 420 W |
| 1600 | 1550 | 48 | 480 W |
| 1800 | 1750 | 54 | 540 W |
| 2000 | 1950 | 60 | 600 W |
| 2200 | 2150 | 66 | 660 W |
| 2400 | 2350 | 72 | 720 W |
Modular Width Configuration Formula
Width (mm) = (n° of elements − 1) × 40 + 25
Examples:
- 5 elements: (5−1) × 40 + 25 = 185 mm width
- 10 elements: (10−1) × 40 + 25 = 385 mm width
- 15 elements: (15−1) × 40 + 25 = 585 mm width
- 20 elements: (20−1) × 40 + 25 = 785 mm width
Each element = 1 vertical tube with 40 mm spacing. First tube = 25 mm offset from left edge. Fully customizable to any width requirement.
Technical Notes
- Thermal Output Per Tube: Values shown are for a single Ø14 mm vertical tube at ΔT=50°C (water at 75°C, ambient at 20°C). Total output = tubes × single tube output.
- Fully Modular Design: Width is infinitely adjustable using the formula. Order any number of elements to achieve desired width while maintaining fixed height.
- Vertical Configuration: All tubes run vertically from top to bottom collector Ø35 mm. Clean, contemporary minimalist aesthetic suitable for modern interiors.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard colors: White RAL 9010 and all RAL/NCS options. Custom finishes available upon request.
- Availability: Heights from 400 mm to 2400 mm. Widths customizable from 5 elements (185 mm) to any maximum width required.
