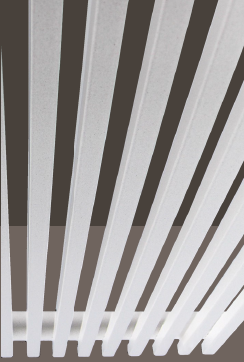

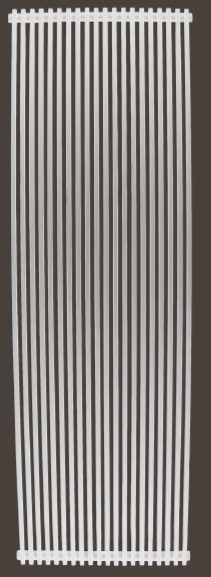

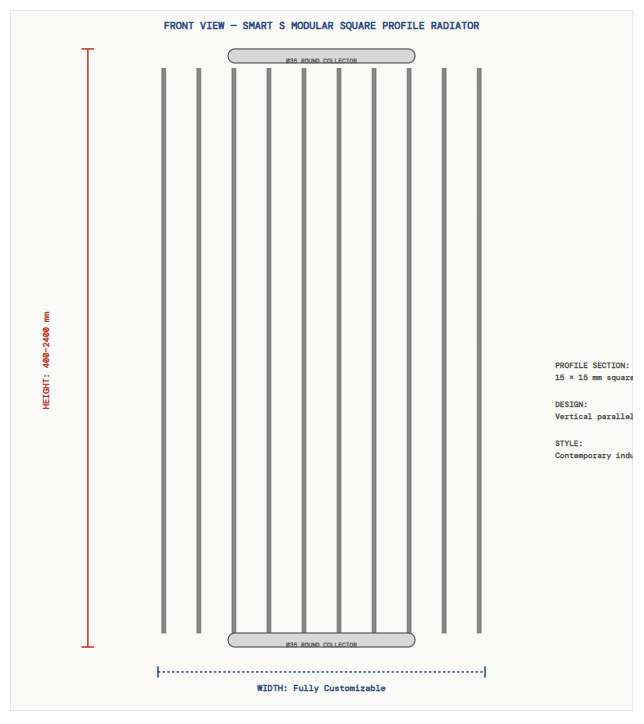

The Geber SMART S is a contemporary modular radiator featuring vertical parallel square profiles (section 15 × 15 mm) in a minimalist industrial design. Each profile is an independent element, allowing unlimited customization of width while maintaining consistent height. Welded onto round collectors (diameter 35 mm) with epoxy powder coating finish.

Flexible Installation Options: Available with bottom connection, central connection, single tube, and custom configurations. Fully modular construction. Available in all standard RAL colors and custom finishes. Perfect for contemporary interiors demanding flexible, design-driven heating solutions with clean architectural lines.

• Contemporary Square Profiles: 15 × 15 mm square steel sections deliver clean architectural lines with solid thermal performance. Each profile is an independent element for maximum design flexibility.
• Thermal Output Per Profile: Values shown are for a single 15 × 15 mm square profile at ΔT=50°C (water at 75°C, ambient at 20°C). Total output = number of profiles × single profile output.
• Flexible Connections: Available with bottom connection, central connection, single tube connection, and custom configurations for any installation requirement.
• Fully Modular Design: Order any number of profiles to achieve desired width. Minimum 3 profiles recommended. Professional round collectors Ø35 mm for excellent structural performance.
• Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
• Finishes: Epoxy powder coating. Standard colors: White RAL 9010 and all RAL/NCS options. Custom finishes available upon request.
• Availability: Heights from 400 mm to 2400 mm. Widths customizable from any number of profiles to maximum width required. Contemporary industrial styling.
