MERIDIANA D

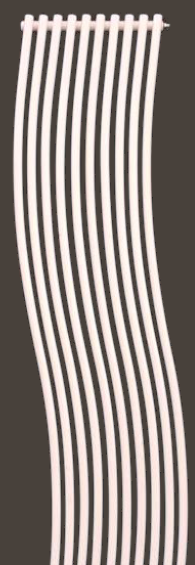

Premium double curved tube heated towel rail · height 1900 mm · enhanced thermal capacity
General Information
The Geber MERIDIANA D heated towel rail is a premium solution featuring double curved steel tubes (diameter 25 mm) arranged in pairs and welded onto round collectors (diameter 35 mm), delivering superior thermal performance for maximum heating efficiency combined with contemporary design.
Hand-finished with epoxy powder coating. Standard color: White RAL 9010. Available in all RAL, NCS, and custom colors. The MERIDIANA D is available exclusively in thermal (hydraulic) version for versatile installation options.
Technical Specifications
▪ Tubes: Double Ø25 mm, curved steel
▪ Collectors: Round Ø35 mm
▪ Double curved tube design
▪ Epoxy powder coating
▪ Height: 1900 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Double Ø25 mm, curved steel
▪ Collectors: Round Ø35 mm
▪ Double curved tube design
▪ Epoxy powder coating
▪ Height: 1900 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Available Options
▪ Thermal (hydraulic) version
▪ Multiple width configurations
▪ All color options available
▪ Contemporary curved aesthetic
▪ Superior thermal capacity
▪ Wall-mounted installation
▪ Premium Italian craftsmanship
▪ Thermal (hydraulic) version
▪ Multiple width configurations
▪ All color options available
▪ Contemporary curved aesthetic
▪ Superior thermal capacity
▪ Wall-mounted installation
▪ Premium Italian craftsmanship

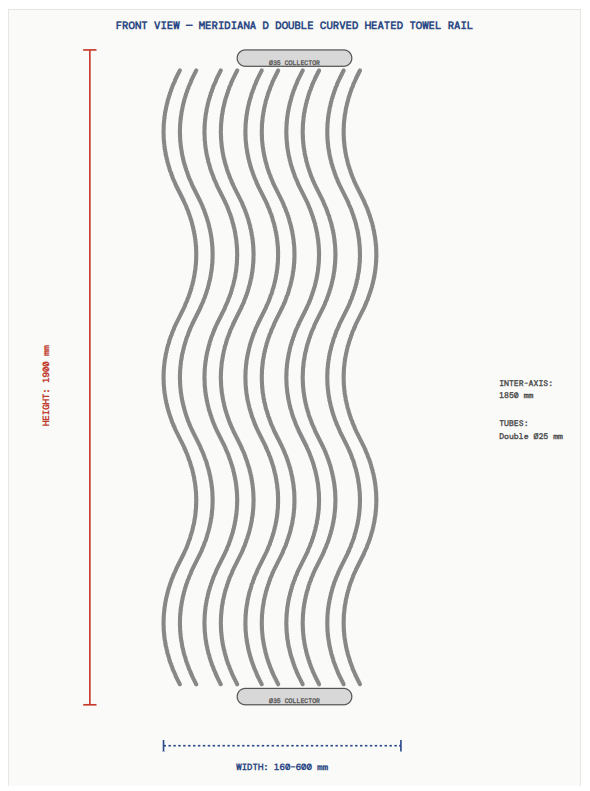

📐 Technical Drawing — Double Curved Tube Premium Design
FRONT VIEW — MERIDIANA D DOUBLE CURVED HEATED TOWEL RAIL
Ø35 COLLECTOR
Ø35 COLLECTOR
HEIGHT: 1900 mm
WIDTH: 160–600 mm
INTER-AXIS:
1850 mm
TUBES:
Double Ø25 mm
📊 Dimensions & Thermal Performance Table (ΔT=50°C)
| Height (mm) | Width (mm) | Inter-axis (mm) | Thermal Power (Watt at ΔT=50) |
|---|---|---|---|
| 1900 | 160 | 1850 | 563 |
| 1900 | 200 | 1850 | 703 |
| 1900 | 240 | 1850 | 844 |
| 1900 | 280 | 1850 | 1125 |
| 1900 | 320 | 1850 | 1266 |
| 1900 | 360 | 1850 | 1407 |
| 1900 | 400 | 1850 | 1547 |
| 1900 | 440 | 1850 | 1688 |
| 1900 | 480 | 1850 | 1828 |
| 1900 | 520 | 1850 | 1969 |
| 1900 | 600 | 1850 | 2250 |
Technical Notes
- Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
- Double Curved Design: Curved tube pattern arranged in pairs provides superior thermal heating with contemporary aesthetic appeal. Available in 11 width configurations from 160 to 600 mm.
- Construction: Double curved tubes Ø25 mm arranged in pairs and welded onto round collectors Ø35 mm. Premium hand-finished epoxy powder coating.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, and custom colors.
- Version: Thermal (hydraulic) · Wall-mounted installation · Ready for immediate use.
