CLASSICO
Horizontal radiator with cold-drawn steel tubes · heights 750–1800 mm · customizable
General Information

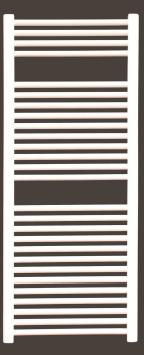

The CLASSICO heated towel rail is a product manufactured with advanced laser welding techniques. It is composed of cold-drawn steel tubes arranged horizontally, welded onto D-profile collectors.
Available with lateral, central, single-tube and custom attachments. Finished with epoxy powder coatings polymerized in an oven at 180 °C. Standard color: White RAL 9010. Available in all RAL, NCS, custom colors and chrome version.
Technical Specifications
▪ Tubes: Ø16 mm, thickness 1 mm
▪ Collectors: D-profile 40×30 mm, thickness 2 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Laser welding
▪ Tubes: Ø16 mm, thickness 1 mm
▪ Collectors: D-profile 40×30 mm, thickness 2 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Laser welding
Available Versions
▪ Hydraulic (with conductive fluid)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ With adjustable thermostat
▪ Ready to use with Schuko plug
▪ Hydraulic (with conductive fluid)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ With adjustable thermostat
▪ Ready to use with Schuko plug

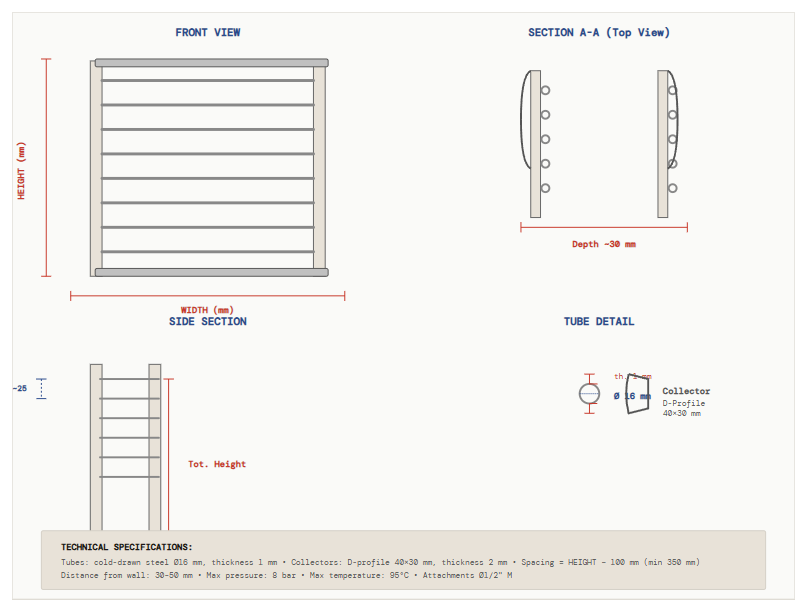

📐 Technical Drawing — Views and Complete Sections
FRONT VIEW
SECTION A-A (Top View)
SIDE SECTION
TUBE DETAIL
WIDTH (mm)
HEIGHT (mm)
Depth ~30 mm
~25
Tot. Height
Ø 16 mm
th. 1 mm
Collector
D-Profile
40×30 mm
TECHNICAL SPECIFICATIONS:
Tubes: cold-drawn steel Ø16 mm, thickness 1 mm • Collectors: D-profile 40×30 mm, thickness 2 mm • Spacing = HEIGHT − 100 mm (min 350 mm)
Distance from wall: 30–50 mm • Max pressure: 8 bar • Max temperature: 95°C • Attachments Ø1/2" M
📊 Complete Catalog Data — All Technical Specifications
| Height (mm) | Width (mm) | Spacing (mm) | Thermal Output W @ ΔT=50 | Tubes (no.) | Code RAL 9010 | Water Content (liters) | Dry Weight (kg) | Exponent (no.) | Electric Resistance Mixed Mode (W) |
|---|---|---|---|---|---|---|---|---|---|
| 750 | 400 | 350 | 377 | 17 | C750400B | 3.3 | 5.0 | 1.23 | 300 |
| 750 | 450 | 400 | 403 | 17 | C750450B | 3.6 | 5.5 | 1.23 | 300 |
| 750 | 500 | 450 | 434 | 17 | C750500B | 3.9 | 5.9 | 1.23 | 400 |
| 750 | 550 | 500 | 468 | 17 | C750550B | 4.1 | 6.3 | 1.12 | 400 |
| 750 | 600 | 550 | 504 | 17 | C750600B | 4.4 | 6.8 | 1.12 | 400 |
| 750 | 750 | 700 | 609 | 17 | C750750B | 5.2 | 8.1 | 1.12 | 400 |
| 750 | 1000 | 950 | 767 | 17 | C7501000B | 6.5 | 10.3 | 1.12 | 400 |
| 1200 | 400 | 350 | 556 | 26 | C1200400B | 5.2 | 7.8 | 1.23 | 500 |
| 1200 | 450 | 400 | 608 | 26 | C1200450B | 5.6 | 8.4 | 1.23 | 500 |
| 1200 | 500 | 450 | 664 | 26 | C1200500B | 6.0 | 9.1 | 1.23 | 500 |
| 1200 | 550 | 500 | 723 | 26 | C1200550B | 6.4 | 9.8 | 1.13 | 500 |
| 1200 | 600 | 550 | 785 | 26 | C1200600B | 6.8 | 10.5 | 1.13 | 600 |
| 1200 | 750 | 700 | 951 | 26 | C1200750B | 8.0 | 12.5 | 1.12 | 600 |
| 1200 | 1000 | 950 | 1168 | 26 | C12001000B | 10.1 | 15.9 | 1.12 | 600 |
| 1500 | 400 | 350 | 721 | 34 | C1500400B | 6.7 | 10.0 | 1.24 | 600 |
| 1500 | 450 | 400 | 784 | 34 | C1500450B | 7.2 | 10.9 | 1.23 | 600 |
| 1500 | 500 | 450 | 843 | 34 | C1500500B | 7.7 | 11.8 | 1.23 | 700 |
| 1500 | 550 | 500 | 919 | 34 | C1500550B | 8.3 | 12.7 | 1.23 | 700 |
| 1500 | 600 | 550 | 996 | 34 | C1500600B | 8.8 | 13.6 | 1.23 | 700 |
| 1500 | 750 | 700 | 1210 | 34 | C1500750B | 10.4 | 16.2 | 1.23 | 700 |
| 1500 | 1000 | 950 | 1484 | 34 | C15001000B | 13.1 | 20.6 | 1.23 | 800 |
| 1800 | 400 | 350 | 719 | 39 | C1800400B | 7.8 | 11.7 | 1.23 | 800 |
| 1800 | 450 | 400 | 885 | 39 | C1800450B | 8.4 | 12.7 | 1.23 | 800 |
| 1800 | 500 | 450 | 977 | 39 | C1800500B | 9.0 | 13.7 | 1.22 | 800 |
| 1800 | 550 | 500 | 1075 | 39 | C1800550B | 9.6 | 14.7 | 1.22 | 800 |
| 1800 | 600 | 550 | 1168 | 39 | C1800600B | 10.2 | 15.7 | 1.22 | 800 |
| 1800 | 750 | 700 | 1443 | 39 | C1800750B | 12.0 | 18.7 | 1.22 | 1000 |
| 1800 | 1000 | 950 | 1684 | 39 | C18001000B | 15.1 | 23.8 | 1.21 | 1000 |
Note: Thermal output at ΔT=50°C (water 75°C, ambient 20°C). Spacing is calculated as: HEIGHT − 100 mm (minimum 350 mm). Exponent for calculating thermal output at different temperatures. Electric resistance for mixed operation in Watts. Indicative values — for precise sizing consult a heating engineer.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669
