LINEA 25 S
Premium modular vertical tube radiator · fully customizable widths · heights 400–2400 mm · exceptional thermal performance
General Information

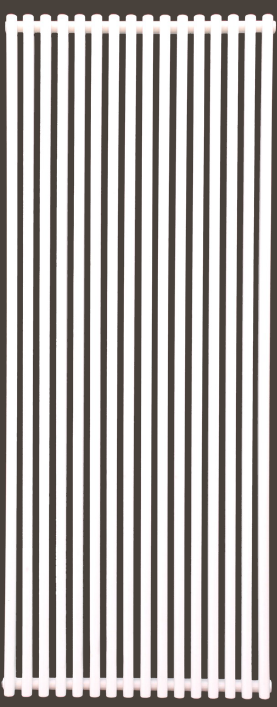

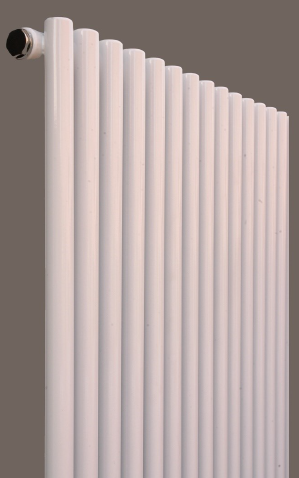

The Geber LINEA 25 S is a premium modular radiator featuring vertical parallel round tubes (diameter 25 mm) in a sophisticated contemporary design. Each tube is an independent element, allowing unlimited customization of width while maintaining consistent height. Welded onto round collectors (diameter 35 mm) with epoxy powder coating finish.
Exceptional Thermal Performance: Premium Ø25 mm tube diameter delivers superior thermal capacity with refined spacing and professional aesthetics. Fully modular construction. Available in all standard RAL colors and custom finishes. Perfect for contemporary interiors demanding flexible, design-driven heating solutions with maximum efficiency.
Technical Specifications
▪ Tubes: Ø25 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Vertical parallel design
▪ Epoxy powder coating
▪ Heights: 400–2400 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Ø25 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Vertical parallel design
▪ Epoxy powder coating
▪ Heights: 400–2400 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Modular System
▪ Width: (n − 1)×40 + 35 mm
▪ Each tube = 1 element
▪ Premium Ø25 mm diameter
▪ Exceptional thermal output
▪ All standard RAL colors
▪ Custom finishes available
▪ Superior performance design
▪ Width: (n − 1)×40 + 35 mm
▪ Each tube = 1 element
▪ Premium Ø25 mm diameter
▪ Exceptional thermal output
▪ All standard RAL colors
▪ Custom finishes available
▪ Superior performance design

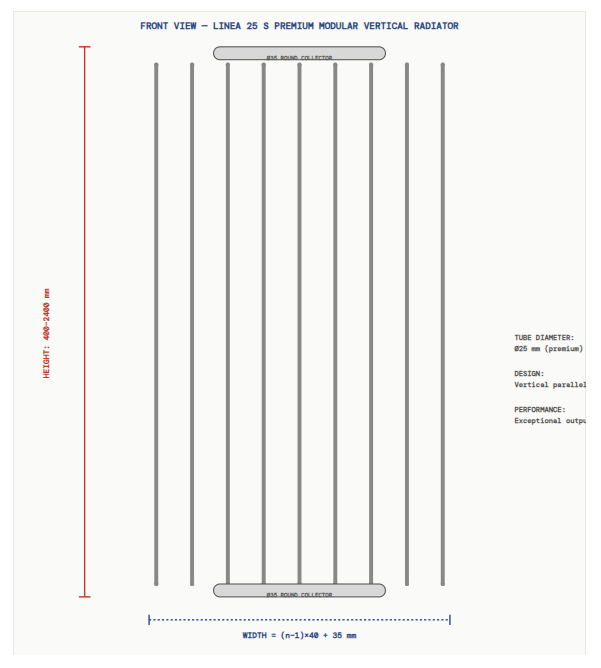

📐 Technical Drawing — Premium Modular Vertical Tube Design Ø25 mm
FRONT VIEW — LINEA 25 S PREMIUM MODULAR VERTICAL RADIATOR
Ø35 ROUND COLLECTOR
Ø35 ROUND COLLECTOR
HEIGHT: 400–2400 mm
WIDTH = (n−1)×40 + 35 mm
TUBE DIAMETER:
Ø25 mm (premium)
DESIGN:
Vertical parallel
PERFORMANCE:
Exceptional output
📊 Thermal Performance Per Single Tube Ø25 mm (ΔT=50°C)
| Height (mm) | Inter-axis (mm) | Thermal Power per Tube (Watt at ΔT=50) | Example: 9 Tubes (355 mm width) |
|---|---|---|---|
| 400 | 350 | 23 | 207 W |
| 600 | 550 | 32 | 288 W |
| 800 | 750 | 41 | 369 W |
| 1000 | 950 | 50 | 450 W |
| 1200 | 1150 | 59 | 531 W |
| 1400 | 1350 | 68 | 612 W |
| 1600 | 1550 | 77 | 693 W |
| 1800 | 1750 | 86 | 774 W |
| 2000 | 1950 | 95 | 855 W |
| 2200 | 2150 | 104 | 936 W |
| 2400 | 2350 | 113 | 1017 W |
Modular Width Configuration Formula
Width (mm) = (n° of elements − 1) × 40 + 35
Configuration Examples:
- 4 tubes: (4−1) × 40 + 35 = 155 mm width · 92 W at 400 mm
- 6 tubes: (6−1) × 40 + 35 = 235 mm width · 138 W at 400 mm
- 9 tubes: (9−1) × 40 + 35 = 355 mm width · 207 W at 400 mm
- 12 tubes: (12−1) × 40 + 35 = 475 mm width · 276 W at 400 mm
- 15 tubes: (15−1) × 40 + 35 = 595 mm width · 345 W at 400 mm
- 20 tubes: (20−1) × 40 + 35 = 795 mm width · 460 W at 400 mm
Each element = 1 vertical tube with 40 mm spacing. First tube = 35 mm offset from left edge. Fully customizable to any width requirement. Exceptional thermal output with premium Ø25 mm diameter.
LINEA Series Comparison — Single Tube Models
| Model | Tube Ø (mm) | Output at 400 mm | Width Formula |
|---|---|---|---|
| LINEA 14 S | 14 | 12 W/tube | (n−1)×40 + 25 |
| LINEA 22 | 22 | 20 W/tube | Custom width |
| LINEA 25 S | 25 | 23 W/tube | (n−1)×40 + 35 |
Technical Notes
- Exceptional Tube Diameter: Premium Ø25 mm tubes deliver exceptional thermal output compared to all other models in the LINEA series. Each tube is an independent element for maximum flexibility.
- Thermal Output Per Tube: Values shown are for a single Ø25 mm vertical tube at ΔT=50°C (water at 75°C, ambient at 20°C). Total output = number of tubes × single tube output.
- Fully Modular Design: Order any number of tubes to achieve desired width using the formula. Minimum 3 tubes recommended for structural stability. Professional round collectors Ø35 mm.
- Premium Spacing: 40 mm spacing between tube centers with 35 mm offset provides refined aesthetic and exceptional performance balance.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard colors: White RAL 9010 and all RAL/NCS options. Custom finishes available upon request.
- Availability: Heights from 400 mm to 2400 mm. Widths customizable from 3 tubes (115 mm) to any maximum width required. Premium Ø25 mm single tube configuration.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669 · all products handcrafted in Italy
