LUSSO
Premium edition heated radiator with enhanced finishes · heights 900–1500 mm · customizable
General Information

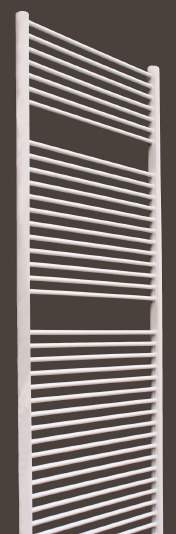

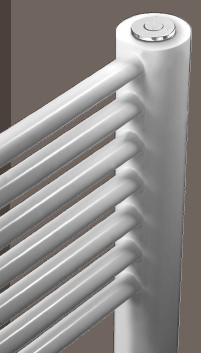

The LUSSO heated radiator is a premium edition combining elegance with superior craftsmanship. It is composed of round steel tubes (diameter 14 mm) arranged horizontally and welded onto vertical round collectors (diameter 35 mm) creating a refined and sophisticated aesthetic.
Hand-finished with high-gloss epoxy powder coatings and available with chrome accents for enhanced visual appeal. Standard color: White RAL 9010. Available in all RAL, NCS, custom colors and premium chrome version.
Technical Specifications
▪ Tubes: Ø14 mm, round steel
▪ Collectors: Round Ø35 mm (premium)
▪ Hand-finished construction
▪ High-gloss epoxy coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Ø14 mm, round steel
▪ Collectors: Round Ø35 mm (premium)
▪ Hand-finished construction
▪ High-gloss epoxy coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Available Versions
▪ Hydraulic (with conductive fluid)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Chrome accents available
▪ Premium color palette
▪ Ready to use with Schuko plug
▪ Hydraulic (with conductive fluid)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Chrome accents available
▪ Premium color palette
▪ Ready to use with Schuko plug

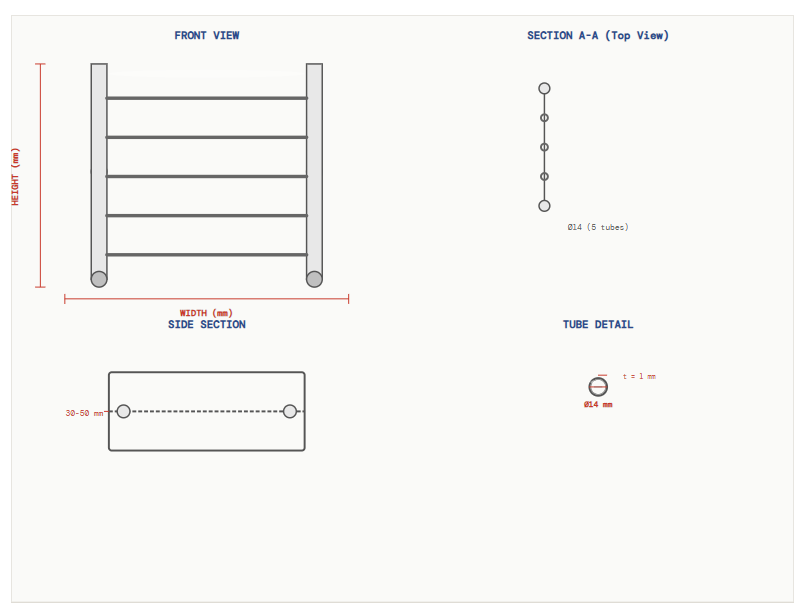

📐 Technical Drawing — Views and Complete Sections
FRONT VIEW
SECTION A-A (Top View)
SIDE SECTION
TUBE DETAIL
WIDTH (mm)
HEIGHT (mm)
Ø14 (5 tubes)
30-50 mm
Ø14 mm
t = 1 mm
| Height (mm) | Width (mm) | Depth (mm) | Thermal Power (Watt at ΔT=50) |
|---|---|---|---|
| 750 | |||
| 385 | 350 | 337 | |
| 435 | 400 | 373 | |
| 485 | 450 | 413 | |
| 535 | 500 | 445 | |
| 585 | 550 | 492 | |
| 735 | 700 | 611 | |
| 1200 | |||
| 385 | 350 | 544 | |
| 435 | 400 | 590 | |
| 485 | 450 | 653 | |
| 535 | 500 | 715 | |
| 585 | 550 | 779 | |
| 735 | 700 | 922 | |
| 1500 | |||
| 385 | 350 | 694 | |
| 435 | 400 | 727 | |
| 485 | 450 | 804 | |
| 535 | 500 | 881 | |
| 585 | 550 | 959 | |
| 735 | 700 | 1122 | |
| 1800 | |||
| 385 | 350 | 794 | |
| 435 | 400 | 885 | |
| 485 | 450 | 980 | |
| 535 | 500 | 1078 | |
| 585 | 550 | 1170 | |
| 735 | 700 | 1433 |
- Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
- Inter-axis (Spacing): Calculated as HEIGHT − 100 mm (minimum 350 mm). Round collectors positioned vertically at frame sides.
- Premium Construction: Round tubes Ø14 mm welded onto premium round collectors Ø35 mm. Hand-finished for superior quality and refined aesthetics.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Premium Finishes: High-gloss epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, custom colors, and premium chrome finish.
- Versions: Hydraulic · Mixed (hydraulic + electric) · Exclusively electric with thermostat · All ready for installation.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669 · all products handcrafted in Italy
