MAGIC S
Compact radiator with square tube design · heights 750–1800 mm · optimized for tight spaces
General Information

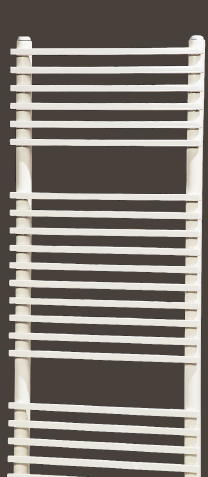

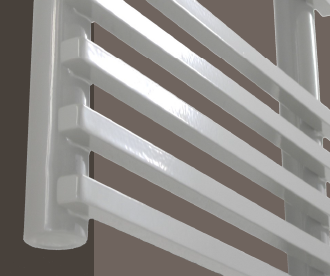

The Geber MAGIC heated radiator is a compact, space-efficient solution featuring square steel tubes (15 × 15 mm) arranged horizontally and welded onto vertical round collectors (diameter 30 mm), creating a sleek and functional design ideal for modern living spaces with space constraints.
Hand-finished with epoxy powder coating. Standard color: White RAL 9010. Available in all RAL, NCS, and custom colors. The MAGIC S is available in thermal (hydraulic), mixed (hydraulic + electric), and exclusively electric versions.
Technical Specifications
▪ Tubes: 15 × 15 mm, square steel
▪ Collectors: Round Ø30 mm
▪ Compact design
▪ Epoxy powder coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: 15 × 15 mm, square steel
▪ Collectors: Round Ø30 mm
▪ Compact design
▪ Epoxy powder coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Available Versions
▪ Thermal (hydraulic)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Multiple color options
▪ Ultra-compact footprint
▪ Ready to use with Schuko plug
▪ Thermal (hydraulic)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Multiple color options
▪ Ultra-compact footprint
▪ Ready to use with Schuko plug

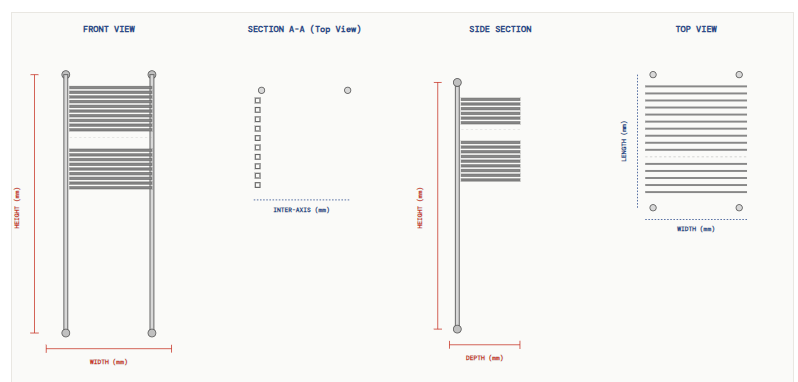

📐 Technical Drawing — Compact Design with Dense Horizontal Tubes
FRONT VIEW
WIDTH (mm)
HEIGHT (mm)
SECTION A-A (Top View)
INTER-AXIS (mm)
SIDE SECTION
DEPTH (mm)
HEIGHT (mm)
TOP VIEW
WIDTH (mm)
LENGTH (mm)
| Height (mm) | Width (mm) | Inter-axis (mm) | Thermal Power (Watt at ΔT=50) |
|---|---|---|---|
| 750 | |||
| 400 | 350 | 370 | |
| 450 | 400 | 398 | |
| 500 | 450 | 432 | |
| 550 | 500 | 470 | |
| 600 | 550 | 510 | |
| 750 | 700 | 617 | |
| 1200 | |||
| 400 | 350 | 542 | |
| 450 | 400 | 608 | |
| 500 | 450 | 676 | |
| 550 | 500 | 735 | |
| 600 | 550 | 785 | |
| 750 | 700 | 921 | |
| 1500 | |||
| 400 | 350 | 738 | |
| 450 | 400 | 829 | |
| 500 | 450 | 872 | |
| 550 | 500 | 941 | |
| 600 | 550 | 1029 | |
| 750 | 700 | 1127 | |
| 1800 | |||
| 400 | 350 | 886 | |
| 450 | 400 | 960 | |
| 500 | 450 | 1088 | |
| 550 | 500 | 1163 | |
| 600 | 550 | 1343 | |
| 750 | 700 | 1519 |
Technical Notes
- Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
- Inter-axis (Spacing): Distance between vertical round collectors Ø30 mm. Square tubes 15 × 15 mm positioned horizontally.
- Compact Construction: Square tubes 15 × 15 mm welded onto vertical round collectors Ø30 mm. Ultra-compact design ideal for space-limited installations.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, and custom colors.
- Versions: Thermal (hydraulic) · Mixed (hydraulic + electric) · Exclusively electric with thermostat · All ready for installation.
