MERIDIANA S
Premium heated towel rail · height 1900 mm · curved serpentine design
General Information

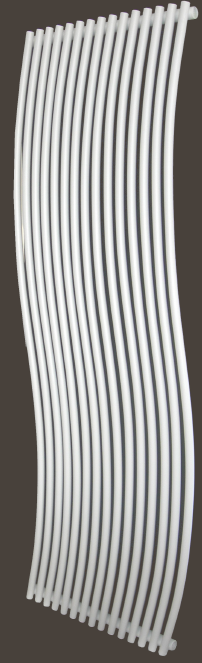

The Geber MERIDIANA S heated towel rail is a premium solution featuring round steel tubes (diameter 25 mm) arranged in an elegant curved serpentine pattern and welded onto round collectors (diameter 35 mm), combining functional towel heating with contemporary aesthetic design.
Hand-finished with epoxy powder coating. Standard color: White RAL 9010. Available in all RAL, NCS, and custom colors. The MERIDIANA S is available exclusively in thermal (hydraulic) version for versatile installation options.
Technical Specifications
▪ Tubes: Ø25 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Serpentine curved design
▪ Epoxy powder coating
▪ Height: 1900 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Ø25 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Serpentine curved design
▪ Epoxy powder coating
▪ Height: 1900 mm
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Available Options
▪ Thermal (hydraulic) version
▪ Multiple width configurations
▪ All color options available
▪ Contemporary curved aesthetic
▪ Functional towel heating
▪ Wall-mounted installation
▪ Premium Italian craftsmanship
▪ Thermal (hydraulic) version
▪ Multiple width configurations
▪ All color options available
▪ Contemporary curved aesthetic
▪ Functional towel heating
▪ Wall-mounted installation
▪ Premium Italian craftsmanship

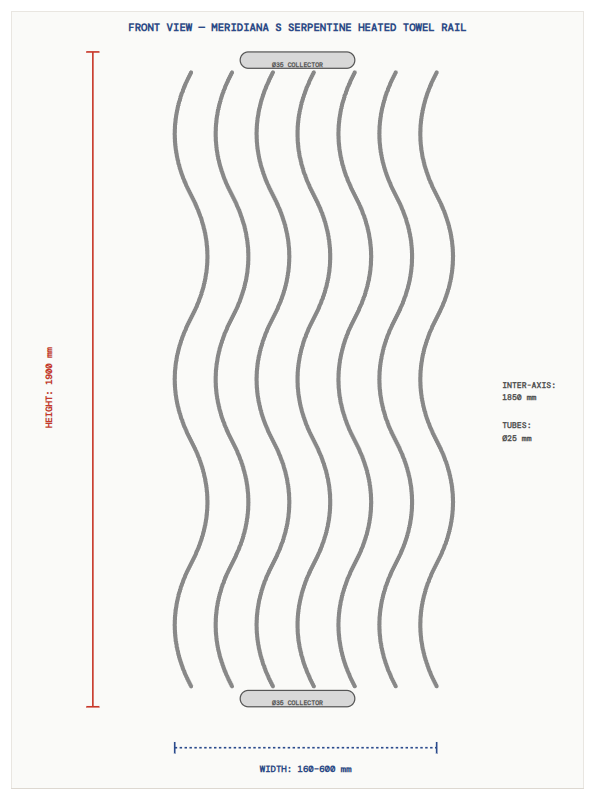

📐 Technical Drawing — Serpentine Curved Design
FRONT VIEW — MERIDIANA S SERPENTINE HEATED TOWEL RAIL
Ø35 COLLECTOR
Ø35 COLLECTOR
HEIGHT: 1900 mm
WIDTH: 160–600 mm
INTER-AXIS:
1850 mm
TUBES:
Ø25 mm
📊 Dimensions & Thermal Performance Table (ΔT=50°C)
| Height (mm) | Width (mm) | Inter-axis (mm) | Thermal Power (Watt at ΔT=50) |
|---|---|---|---|
| 1900 | 160 | 1850 | 388 |
| 1900 | 200 | 1850 | 485 |
| 1900 | 240 | 1850 | 582 |
| 1900 | 280 | 1850 | 776 |
| 1900 | 320 | 1850 | 873 |
| 1900 | 360 | 1850 | 970 |
| 1900 | 400 | 1850 | 1067 |
| 1900 | 440 | 1850 | 1164 |
| 1900 | 480 | 1850 | 1261 |
| 1900 | 520 | 1850 | 1358 |
| 1900 | 560 | 1850 | 1455 |
| 1900 | 600 | 1850 | 1552 |
Technical Notes
- Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
- Serpentine Design: Curved wavy tube pattern provides functional towel heating with contemporary aesthetic appeal. Available in 12 width configurations from 160 to 600 mm.
- Construction: Round tubes Ø25 mm arranged in serpentine pattern and welded onto round collectors Ø35 mm. Premium hand-finished epoxy powder coating.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, and custom colors.
- Version: Thermal (hydraulic) · Wall-mounted installation · Ready for immediate use.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669 · all products handcrafted in Italy
