MODERNO
Contemporary radiator with modern square tube design · heights 750–1800 mm · customizable



General Information

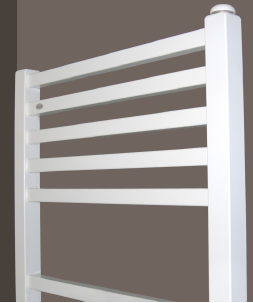

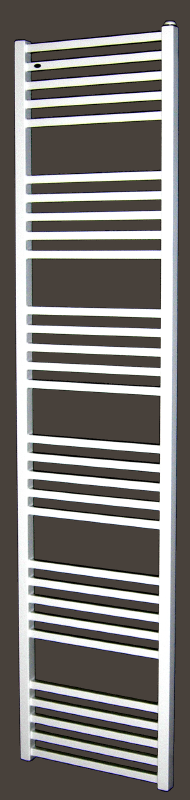

The MODERNO heated radiator is a contemporary solution combining minimalist design with thermal performance. It features square steel tubes (20 × 20 mm) arranged horizontally and mounted on vertical square collectors (30 × 30 mm), creating a refined and modern aesthetic perfect for contemporary interiors.

Hand-finished with high-quality epoxy powder coating available in multiple colors. Standard color: White RAL 9010. Available in all RAL, NCS, custom colors and premium chrome version. The MODERNO is available in hydraulic, mixed (hydraulic + electric), and exclusively electric versions.

Technical Specifications
 ▪ Tubes: 20 × 20 mm, square steel
 ▪ Collectors: Square 30 × 30 mm
 ▪ Modern horizontal design
 ▪ Epoxy powder coating
 ▪ Max operating pressure: 8 bar
 ▪ Test pressure: 12 bar
 ▪ Max temperature: 95 °C
Available Versions
 ▪ Hydraulic (with conductive fluid)
 ▪ Mixed (hydraulic + electric)
 ▪ Exclusively electric
 ▪ Multiple color options
 ▪ Space-efficient design
 ▪ Ready to use with Schuko plug

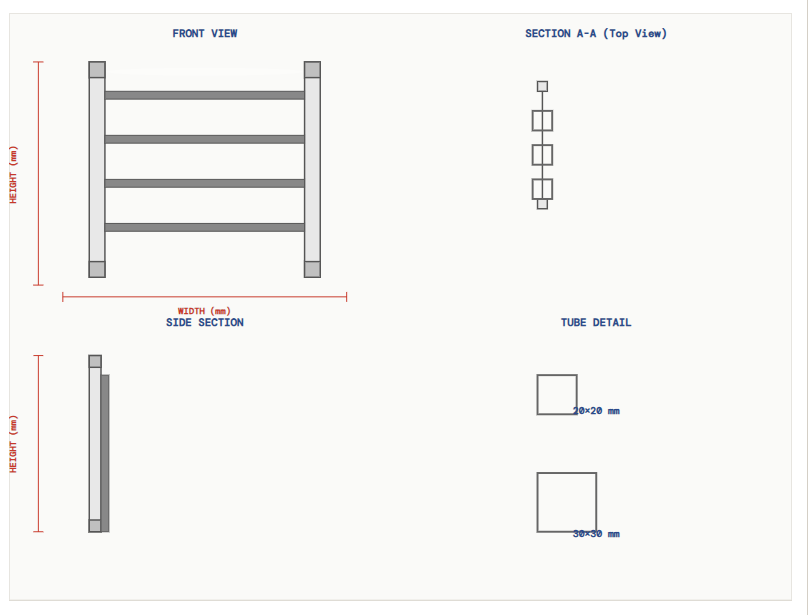

📐 Technical Drawing — Views and Complete Sections
FRONT VIEW SECTION A-A (Top View) SIDE SECTION TUBE DETAIL   WIDTH (mm) HEIGHT (mm)       HEIGHT (mm)   20×20 mm 30×30 mm

Height (mm)Width (mm)Depth (mm)Thermal Power (Watt at ΔT=50)
750
380350283
430400302
480450326
530500351
580550378
730700457
980950575
1200
380350417
430400456
480450498
530500542
580550589
730700713
980950876
1500
380350541
430400588
480450632
530500689
580550747
730700908
9809501113
1800
380350539
430400664
480450733
530500806
580550876
7307001082
9809501263


Technical Notes
  • Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
  • Inter-axis (Spacing): Distance between vertical collector columns. Square tubes 20 × 20 mm positioned horizontally.
  • Modern Construction: Square tubes 20 × 20 mm welded onto vertical square collectors 30 × 30 mm. Contemporary minimalist design perfect for modern interiors.
  • Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
  • Finishes: High-quality epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, custom colors, and premium chrome finish.
  • Versions: Hydraulic · Mixed (hydraulic + electric) · Exclusively electric with thermostat · All ready for installation.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669 · all products handcrafted in Italy
