SCALETTA 14 D
Compact radiator with double round tube design · heights 750–1800 mm · optimized for maximum thermal output
General Information

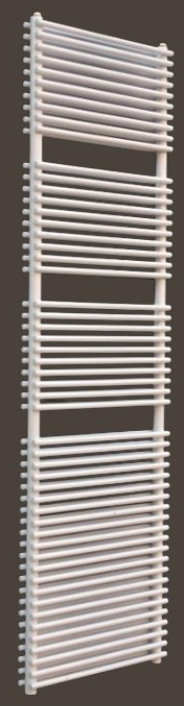

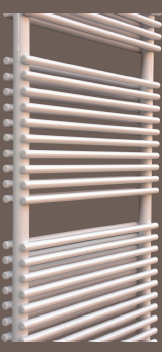

The Geber SCALETTA 14 D heated radiator is a compact, space-efficient solution featuring double round steel tubes (diameter 14 mm) arranged horizontally in pairs and welded onto vertical round collectors (diameter 35 mm), delivering enhanced thermal performance in a sleek design ideal for modern living spaces.
Hand-finished with epoxy powder coating. Standard color: White RAL 9010. Available in all RAL, NCS, and custom colors. The SCALETTA 14 D is available in thermal (hydraulic), mixed (hydraulic + electric), and exclusively electric versions.
Technical Specifications
▪ Tubes: Double Ø14 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Compact design with high output
▪ Epoxy powder coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Double Ø14 mm, round steel
▪ Collectors: Round Ø35 mm
▪ Compact design with high output
▪ Epoxy powder coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Available Versions
▪ Thermal (hydraulic)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Multiple color options
▪ Enhanced thermal efficiency
▪ Ready to use with Schuko plug
▪ Thermal (hydraulic)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Multiple color options
▪ Enhanced thermal efficiency
▪ Ready to use with Schuko plug

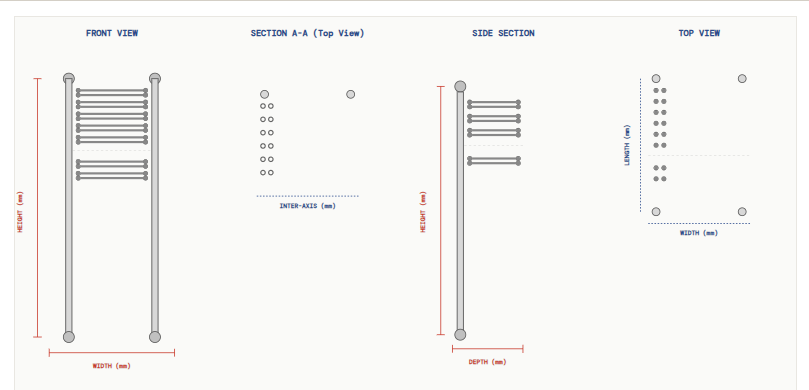

📐 Technical Drawing — Double Round Tube Compact Design
FRONT VIEW
WIDTH (mm)
HEIGHT (mm)
SECTION A-A (Top View)
INTER-AXIS (mm)
SIDE SECTION
DEPTH (mm)
HEIGHT (mm)
TOP VIEW
WIDTH (mm)
LENGTH (mm)
📊 Dimensions & Thermal Performance Table (ΔT=50°C)
| Height (mm) | Width (mm) | Inter-axis (mm) | Thermal Power (Watt at ΔT=50) |
|---|---|---|---|
| 750 | 400 | 350 | 434 |
| 750 | 450 | 400 | 476 |
| 750 | 500 | 450 | 539 |
| 750 | 550 | 500 | 595 |
| 750 | 600 | 550 | 658 |
| 750 | 750 | 700 | 833 |
| 1200 | 400 | 350 | 693 |
| 1200 | 450 | 400 | 756 |
| 1200 | 500 | 450 | 840 |
| 1200 | 550 | 500 | 1001 |
| 1200 | 600 | 550 | 1085 |
| 1200 | 750 | 700 | 1253 |
| 1500 | 400 | 350 | 815 |
| 1500 | 450 | 400 | 903 |
| 1500 | 500 | 450 | 994 |
| 1500 | 550 | 500 | 1113 |
| 1500 | 600 | 550 | 1183 |
| 1500 | 750 | 700 | 1463 |
| 1800 | 400 | 350 | 963 |
| 1800 | 450 | 400 | 1050 |
| 1800 | 500 | 450 | 1155 |
| 1800 | 550 | 500 | 1281 |
| 1800 | 600 | 550 | 1372 |
| 1800 | 750 | 700 | 1687 |
Technical Notes
- Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
- Inter-axis (Spacing): Distance between vertical round collectors Ø35 mm. Double round tubes Ø14 mm positioned horizontally in pairs.
- Double Tube Construction: Double round tubes Ø14 mm arranged in pairs and welded onto vertical round collectors Ø35 mm. Enhanced thermal efficiency with compact design.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, and custom colors.
- Versions: Thermal (hydraulic) · Mixed (hydraulic + electric) · Exclusively electric with thermostat · All ready for installation.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669 · all products handcrafted in Italy
