The Geber SMART D is a contemporary modular radiator featuring double vertical parallel square profiles (section 15 × 15 mm) arranged in pairs for enhanced thermal capacity. Industrial minimalist design with unlimited width customization. Welded onto round collectors (diameter 35 mm) with epoxy powder coating finish.

Enhanced Thermal Capacity: Double square profile configuration delivers superior heat output with contemporary architectural aesthetics. Available with bottom connection, central connection, single tube, and custom configurations. Fully modular construction. Available in all standard RAL colors and custom finishes. Perfect for contemporary interiors demanding flexible, design-driven heating with maximum efficiency.

• Double Square Profiles: 15 × 15 mm double square steel sections deliver maximum thermal output with striking contemporary industrial aesthetics. Each profile is an independent element for ultimate design flexibility.
• Thermal Output Per Profile: Values shown are for a single 15 × 15 mm square profile at ΔT=50°C (water at 75°C, ambient at 20°C). Total output = number of profiles × single profile output. Double profile configuration delivers approximately 60% more heat than SMART S.
• Flexible Connections: Available with bottom connection, central connection, single tube connection, and custom configurations for any installation requirement.
• Fully Modular Design: Order any number of profiles to achieve desired width. Minimum 2 profiles recommended. Professional round collectors Ø35 mm for excellent structural performance.
• Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
• Finishes: Epoxy powder coating. Standard colors: White RAL 9010 and all RAL/NCS options. Custom finishes available upon request.

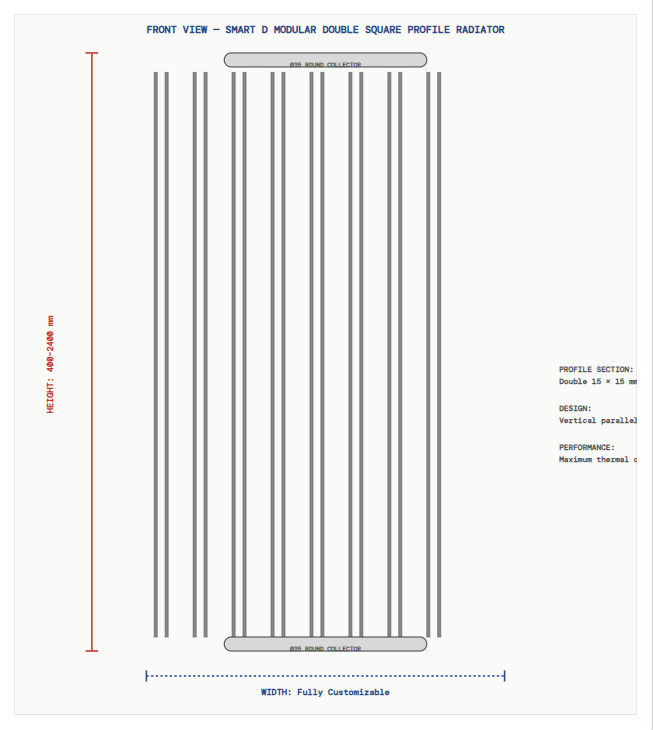

• Availability: Heights from 400 mm to 2400 mm. Widths customizable from any number of profiles to maximum width required. Contemporary industrial styling with maximum thermal capacity.
