STILE
Styled horizontal radiator with refined proportions · heights 800–1600 mm · customizable
General Information

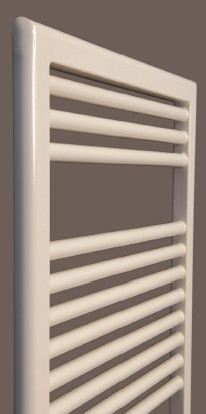

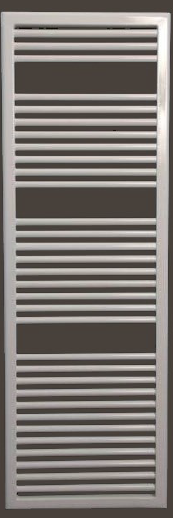

The STILE heated towel rail is a classic design with refined proportions and elegant detailing. It is composed of round steel tubes (diameter 22 mm) arranged horizontally and welded onto vertical D-profile collectors (40 × 30 mm) forming a refined frame structure.
Available with multiple color options including two-tone and chrome versions. Finished with epoxy powder coatings polymerized at 180 °C. Standard color: White RAL 9010. Available in all RAL, NCS, custom colors and chrome version.
Technical Specifications
▪ Tubes: Ø22 mm, round steel
▪ Collectors: D-profile 40×30 mm
▪ Frame construction with vertical supports
▪ Epoxy powder coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
▪ Tubes: Ø22 mm, round steel
▪ Collectors: D-profile 40×30 mm
▪ Frame construction with vertical supports
▪ Epoxy powder coating
▪ Max operating pressure: 8 bar
▪ Test pressure: 12 bar
▪ Max temperature: 95 °C
Available Versions
▪ Hydraulic (with conductive fluid)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Two-tone color options
▪ Chrome finish available
▪ Ready to use with Schuko plug
▪ Hydraulic (with conductive fluid)
▪ Mixed (hydraulic + electric)
▪ Exclusively electric
▪ Two-tone color options
▪ Chrome finish available
▪ Ready to use with Schuko plug

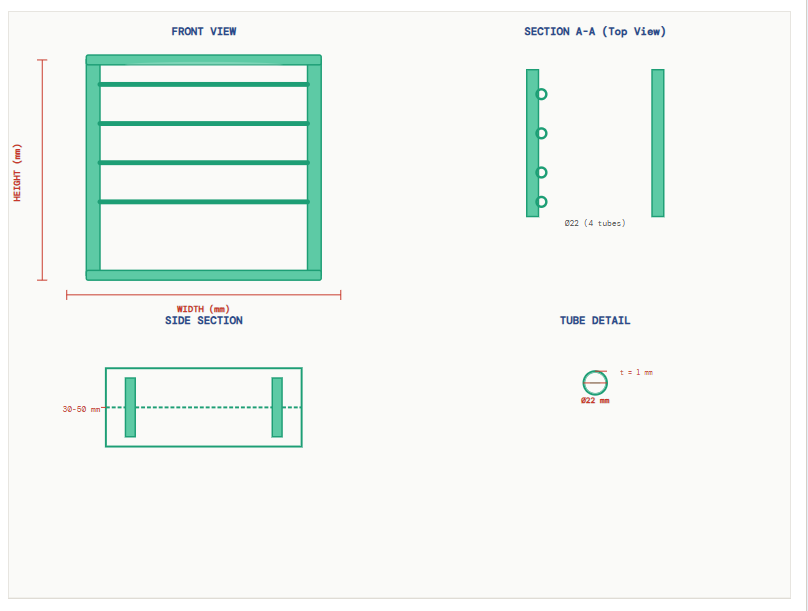

📐 Technical Drawing — Views and Complete Sections
FRONT VIEW
SECTION A-A (Top View)
SIDE SECTION
TUBE DETAIL
WIDTH (mm)
HEIGHT (mm)
Ø22 (4 tubes)
30-50 mm
Ø22 mm
t = 1 mm
| Height (mm) | Width (mm) | Depth (mm) | Thermal Power (Watt at ΔT=50) |
|---|---|---|---|
| 750 | |||
| 400 | 350 | 381 | |
| 450 | 400 | 411 | |
| 500 | 450 | 444 | |
| 550 | 500 | 478 | |
| 600 | 550 | 516 | |
| 750 | 700 | 681 | |
| 1000 | 950 | 781 | |
| 1200 | |||
| 400 | 350 | 583 | |
| 450 | 400 | 621 | |
| 500 | 450 | 679 | |
| 550 | 500 | 741 | |
| 600 | 550 | 803 | |
| 750 | 700 | 974 | |
| 1000 | 950 | 1192 | |
| 1500 | |||
| 400 | 350 | 763 | |
| 450 | 400 | 803 | |
| 500 | 450 | 863 | |
| 550 | 500 | 941 | |
| 600 | 550 | 1022 | |
| 750 | 700 | 1239 | |
| 1000 | 950 | 1514 | |
| 1800 | |||
| 400 | 350 | 822 | |
| 450 | 400 | 907 | |
| 500 | 450 | 1003 | |
| 550 | 500 | 1103 | |
| 600 | 550 | 1199 | |
| 750 | 700 | 1481 | |
| 1000 | 950 | 1725 |
Technical Notes
- Thermal Output: Calculated at ΔT=50°C (water at 75°C, ambient at 20°C). Values in watts (W). Output varies with exponent n for different temperature conditions.
- Inter-axis (Spacing): Calculated as HEIGHT − 100 mm (minimum 350 mm). Collectors positioned vertically at frame sides.
- Construction: Frame system with round tubes Ø22 mm welded onto vertical D-profile collectors. Refined proportions for contemporary aesthetics.
- Pressure/Temperature: Max operating pressure: 8 bar · Test pressure: 12 bar · Max temperature: 95 °C
- Finishes: Epoxy powder coating. Standard: White RAL 9010. Available in all RAL, NCS, custom colors, and chrome finish.
- Versions: Hydraulic · Mixed (hydraulic + electric) · Exclusively electric with thermostat · All ready for installation.
PRO·SER di Nicola Ugliengo · nu@pro-ser.it · +39 349 620 8669 · all products handcrafted in Italy
